720P/1080P (8MP) Video Balun for CC Camera

AHD/CVI/TVI 720P/1080P (2MP) Video Balun for CC Camera

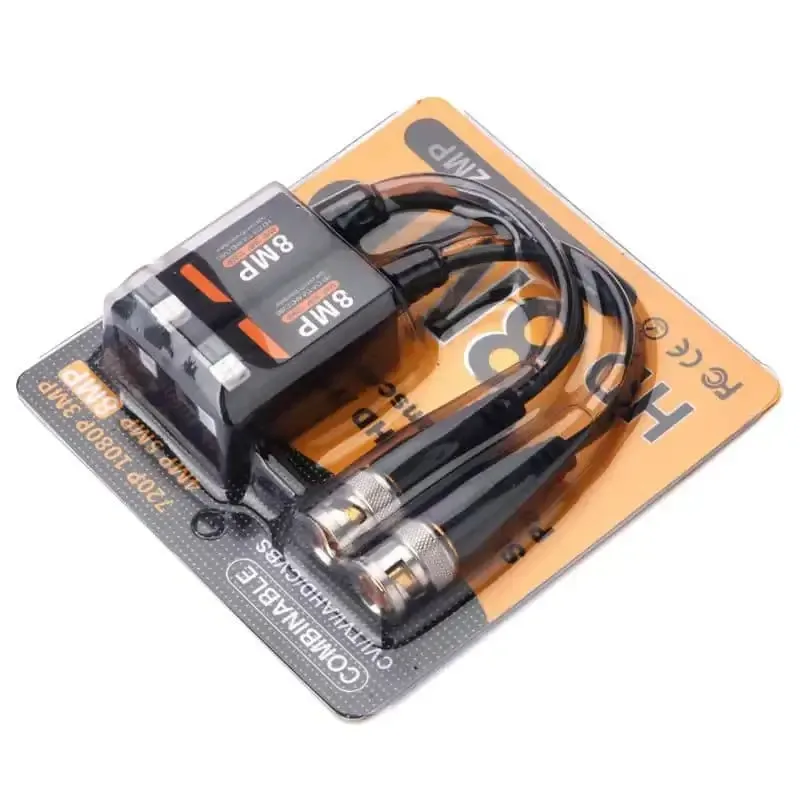

The AHD/CVI/TVI 720P/1080P (2MP) Video Balun is a device that functions as a connector for cameras or DVRs. This video balun comes in black and can transmit a single channel of the video signal. It is compatible with various formats such as AHD, HDCVI, HDTVI, and CVBS, and can support a resolution range of 720P, 960P, 1080P, 3MP, 4MP, 5MP, and 8MP. This device is designed to provide excellent anti-interference capability with over 60 dB. It has a coaxial video connector with BNC-M and a twisted-pair video connector with a screw terminal. The transmission distance for AHD/CVI is 400m (max) while for TVI it is 200m (max). This video balun is compatible with UTP CAT5/5E/6 category-type cables. It has a coaxial cable connector with 2KV (common code) and a UTP cable connector with 2KV (different code) or 4KV (common code), as per the IEC61000-4-5 standards. The BNC male connector has a resistance of 75 Ohms, while the UTP connector has a resistance of 100 Ohms.
